GS-D9025MG
|
|
Control System
|
Positive PWM control 1500 usec Neutral
|
|
Operation Voltage Range
|
4.8V ~ 6.0V
|
|
Operation Temperature Range
|
-20C°~ +60C°
|
|
Test Voltage:
|
At 4.8V
|
At 6.0V
|
|
Standing Torque
|
2.35kg.cm
|
2.5kg.cm
|
|
Speed
|
0.11 sec / 60 deg at no load
|
0.09sec / 60 deg at no load
|
|
Idle Current
|
200mA at stopped
|
250mA at stopped
|
|
Running Current
|
260mA at no load
|
320mA at no load
|
|
Dead band width
|
3 usec
|
3 usec
|
|
Circle
|
15000 times
|
|
Operation Travel
|
60°±10°
|
|
Direction
|
Re-clock wise/ Pulse Travel 1500 to 1900 usec
|
|
Driver type
|
FET drive
|
|
Motor Type
|
Metal gear
|
|
Potentiometer Type
|
Indirect drive
|
|
Amplifier Type
|
Digital Control
|
|

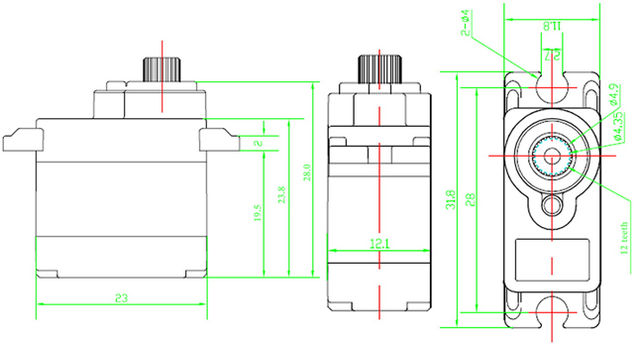

Dimensions
|
23*12.1*28.8 mm
|
|
Weight:
|
13g without splined horn
|
|
Ball Bearing
|
Ball bearing
|
|
Gear Material
|
Metal
|
|
Case Material
|
POM
|
|
Connector Wire Length
|
180mm
|
|
Connector Wire Gauge
|
26AWG heavy duty（Futaba Universal）
|
|
Wire Info (Brown)
|
Negative
|
|
Wire Info (Red)
|
Positive
|
|
Wire Info (Orange)
|
Signal
|
|
![]()
|
|
