GS-5509DMG
|
|
Control System
|
Positive PWM control 1500 usec Neutral
|
|
Operation Voltage Range
|
4.8V ~ 7.2V
|
|
Operation Temperature Range
|
-20C°~ +60C°
|
|
Test Voltage:
|
At 4.8V
|
At 6.0V
|
|
Standing Torque
|
9.2kg.cm
|
11kg.cm
|
|
Speed
|
0.25 sec / 60 deg at no load
|
0.23 sec / 60 deg at no load
|
|
Idle Current
|
250mA at stopped
|
300mA at stopped
|
|
Running Current
|
1200mA at no load
|
1500mA at no load
|
|
Dead band width
|
3 usec
|
3 usec
|
|
Circle
|
10000 times
|
|
Operation Travel
|
60°±10°
|
|
Direction
|
Re-clock wise/ Pulse Travel 1500 to 1900 usec
|
|
Diver type
|
FET drive
|
|
Motor Type
|
Carbon Brush
|
|
Potentiometer Type
|
Indirect drive
|
|
Amplifier Type
|
Digital Control
|
|

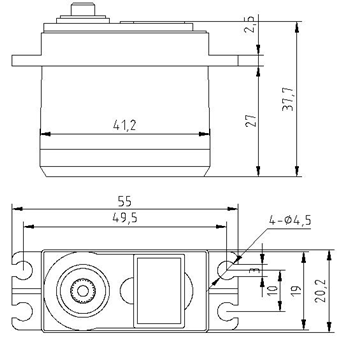

Dimensions
|
40.8*20.1*38.0 mm
|
|
Weight:
|
55g without splined horn
|
|
Ball Bearing
|
Double ball bearing
|
|
Gear Material
|
Metal gear
|
|
Case Material
|
Nylon plus fiber
|
|
Connector Wire Length
|
300mm
|
|
Connector Wire Gauge
|
22AWG heavy duty（JR Universal）
|
|
Wire Info (Brown)
|
Negative
|
|
Wire Info (Red)
|
Positive
|
|
Wire Info (Orange)
|
Signal
|
|
![]()
|
|
![]()
GOTECK RC INC
|
GS-5509DMG
|
![]()
|
