HB1621SG
|
|
Control System
|
Positive PWM control（1500 usec Neutral）
|
|
Operation Voltage Range
|
6.0V ~ 7.4V
|
|
Operation Temperature Range
|
-20C°~ +60C°
|
|
Test Voltage:
|
At 6.0V
|
At 7.4V
|
|
Torque
|
15kg.cm
|
19kg.cm
|
|
Speed
|
0.085sec / 60 deg
|
0.070sec / 60 deg
|
|
Idle Current
|
350mA
|
400mA
|
|
Running Current
|
3300mA
|
3800mA
|
|
Dead band width
|
1 usec
|
|
Circle
|
>15000 times/idle load
|
|
Operation Travel
|
55°±5°
|
|
Direction
|
Anti-clockwise/ pulse travel 1500 to 2100 usec
|
|
Drive type
|
FET drive
|
|
Motor Type
|
Brushless
|
|
Potentiometer Type
|
Indirect drive
|
|
Amplifier Type
|
Digital
|
|

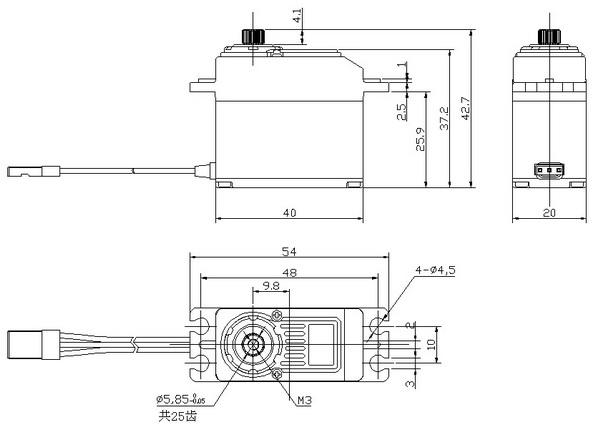

Dimensions
|
40*20*37.2mm
|
|
Weight:
|
53g （without accessories）
|
|
Ball Bearing
|
Double ball bearing
|
|
Gear Material
|
Import steel gear
|
|
Case Material
|
Nylon plus fiber/ Aluminum Medium
|
|
Connector Wire Length
|
300mm
|
|
Connector Wire Gauge
|
22AWG，JR Universal
|
|
Brown
|
Negative
|
|
Red
|
Positive
|
|
Orange
|
Signal
|
|
Application
|
Car model；fixed-wing aircraft；helicopter
|
|
![]()
|
|
![]()
|
|
![]()
|
