DC1614SG
|
|
Control System
|
Positive PWM control （1500 usec Neutral）
|
|
Operation Voltage Range
|
4.8V ~ 6.0V
|
|
Operation Temperature Range
|
-20C°~ +60C°
|
|
Test Voltage:
|
At 4.8V
|
At 6.0V
|
|
Torque
|
14kg.cm
|
16kg.cm
|
|
Idle speed
|
0.135sec / 60 deg
|
0.12sec / 60 deg
|
|
Idle current
|
350mA
|
400mA
|
|
Running Current
|
3000mA
|
3400mA
|
|
Death band width
|
1 usec
|
|
Circle
|
>15000 times/ idle load
|
|
Operation travel
|
55°±5°
|
|
Direction
|
Anti-clockwise/ pulse travel 1500 to 2100 usec
|
|
Drive type
|
FET drive
|
|
Motor type
|
Coreless
|
|
Potentiometer type
|
Indirect drive
|
|
Amplifier type
|
Digital
|
|

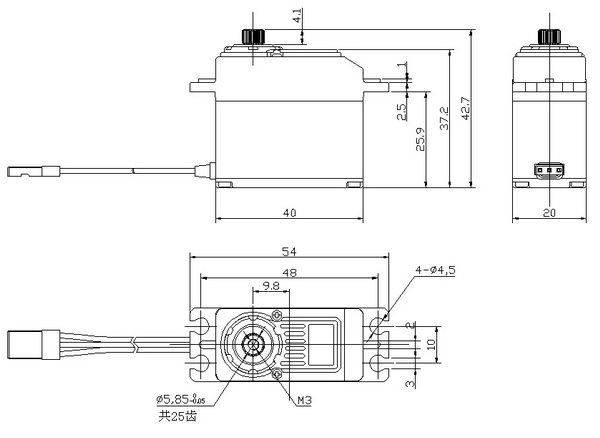

Size
|
40*20*37.2mm
|
|
Weight
|
53g （without accessories）
|
|
Ball bearing
|
Double ball bearing
|
|
Gear material
|
Import steel gear
|
|
Case material
|
Nylon plus fiber/ Aluminum Medium
|
|
Connector Wire Length
|
300mm
|
|
Connector Wire Gauge
|
22AWG，JR Universal
|
|
Brown
|
Negative
|
|
Red
|
Positive
|
|
Orange
|
Signal
|
|
Application
|
Car model; fixed-wing aircraft; helicopter; robot.
|
|
![]()
|
|
![]()
|
|
![]()
|
