  • iFlight iPower GBM2804H-100T 狗三无刷云台电机 手持

iFlight iPower GBM2804H-100T 狗三无刷云台电机 手持

品牌:翼飞

  • 惠州市翼飞智能科技有限公司

    普通商家 认证商家
  • 经营模式:新机制造商 经销和服务商
  • 地区:中国广东省惠州市
  • 地址:广东省惠州市仲恺高新区华宇路2号3楼 翼飞智能科技

产品详情

产品参数

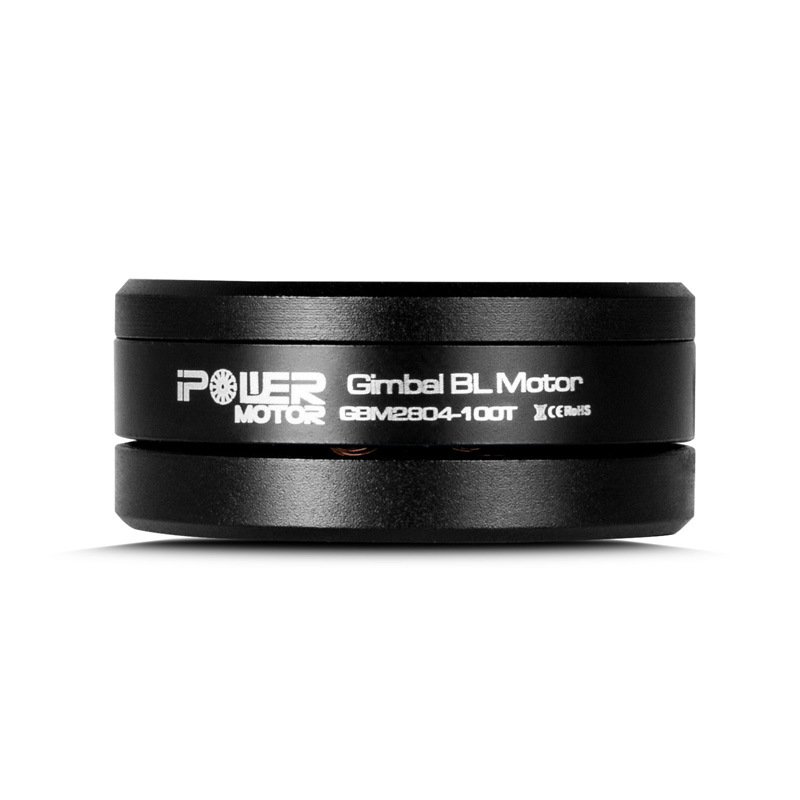

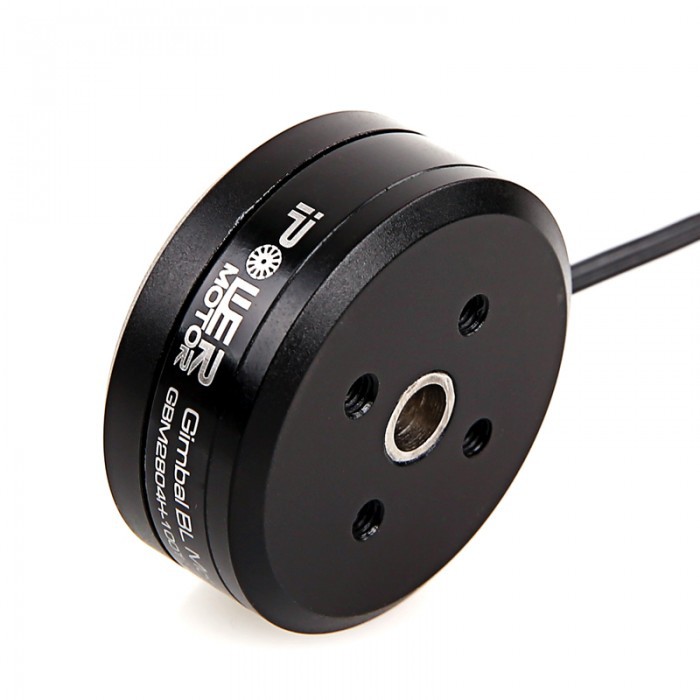

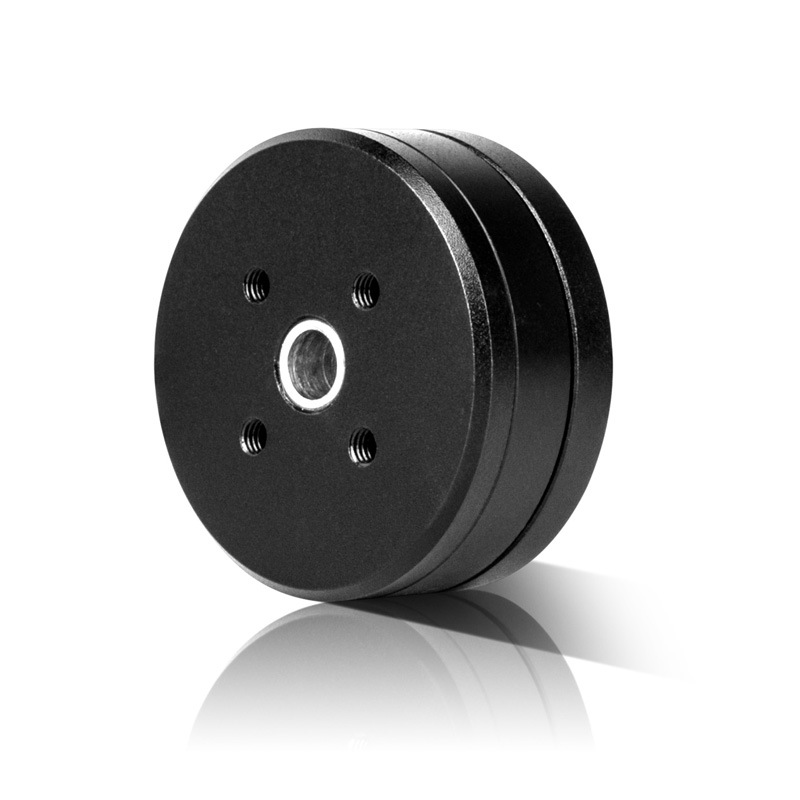

产品图片

iFlight (iPower 电机)

GBM2804H-100T马达适用于狗三手持云台,GOPRO云台等

型号.:GBM2804H-100T

重量:41.5g

马达外型尺寸:dia 34mm x hgt 10mm

定子尺寸:dia 28mm x hgt 4mm

线径:0.19mm

结构:12N14P

内阻:10.1 ohms

适用相机重量: 200-500g

Introduction:

The GBM2804H-100T motor by iPower Motors are the ultimate brushless gimbal motor for GoPro Cameras.This motor is designed for small multi-rotor platforms looking to lift GoPro sized gear – 0.5-1KG/cm Torque.The principle of the camera stabilization using brushless direct drive motors In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.

Specifications:

Model NO.

GBM2804H-100T

Weight

41.5g

Motor Dimensions

dia 34mm x hgt 15mm

Stator Dimensions

dia 28mm x hgt 4mm

Copper wire(OD)

0.19mm

Configuration

12N14P

Resistance

11.2 ohms

Base center pitch

16mm 19mm

Pre-wound

with 100 turns,Hollow shaft

Camera range (Torque)

200-400 grams

Voltage

11.1V

Current

0.099A

Rotational Speed

1637 rpm
