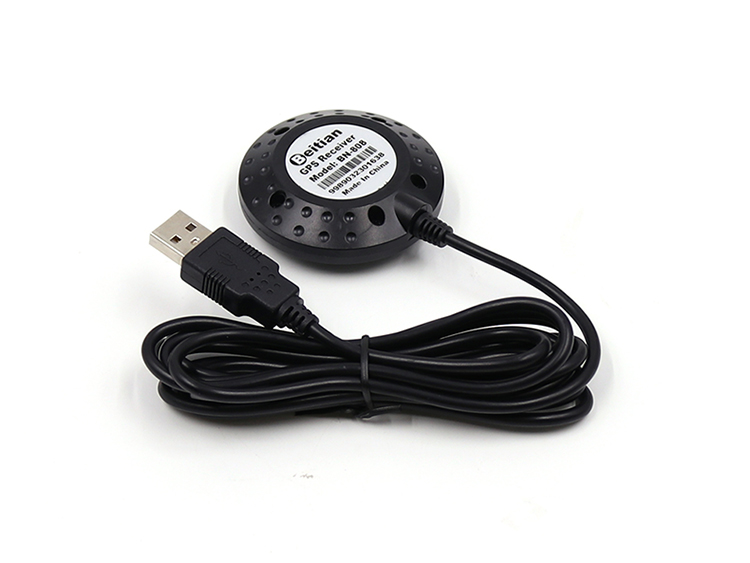

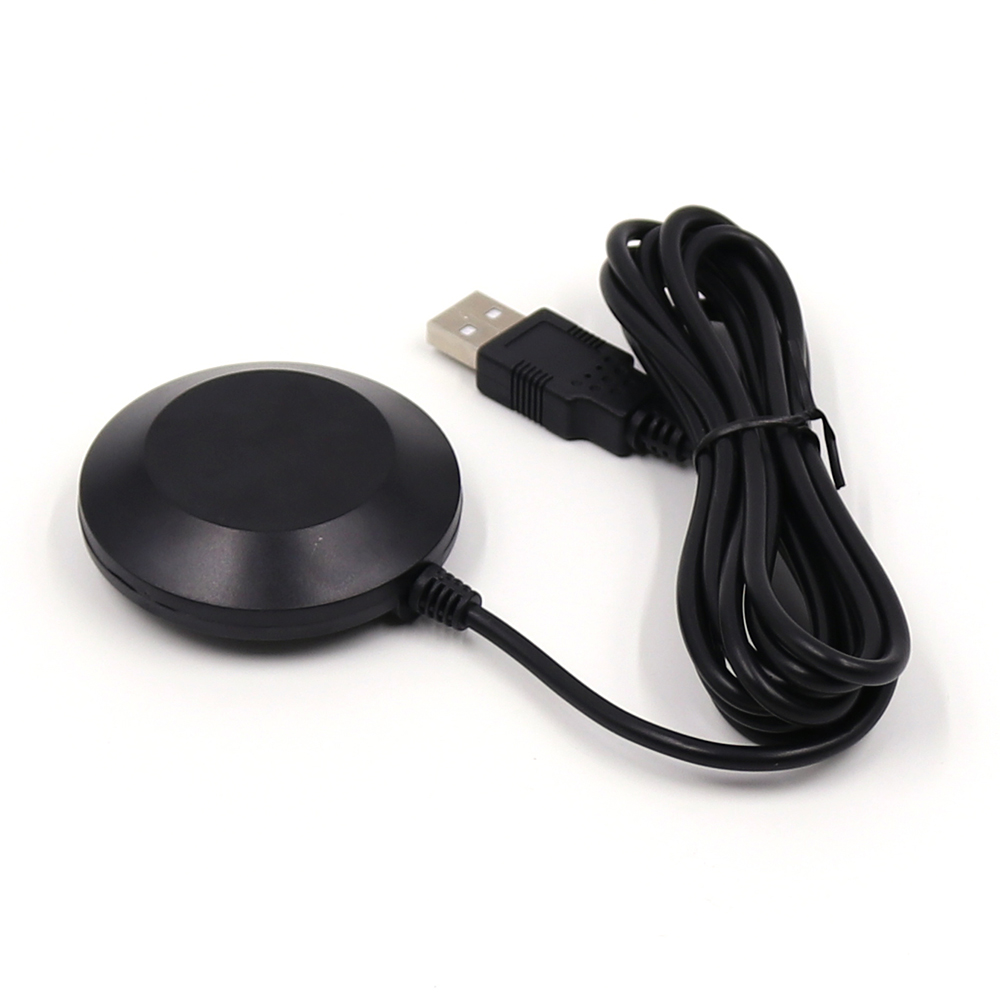

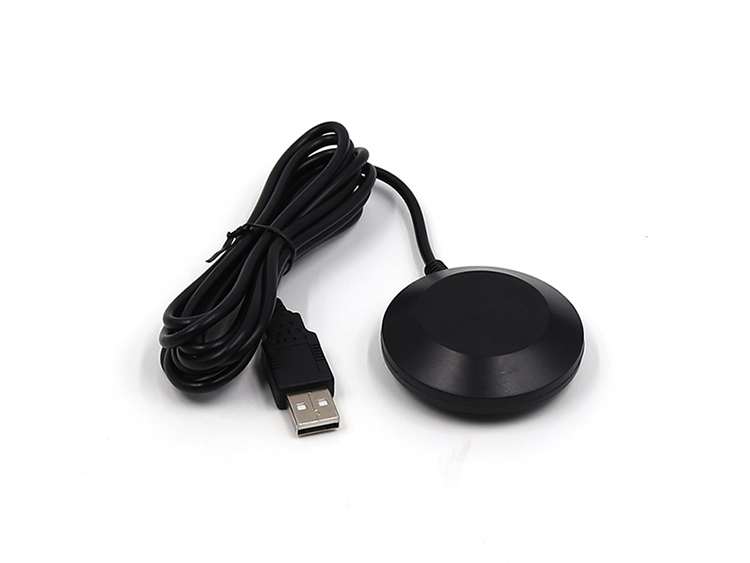

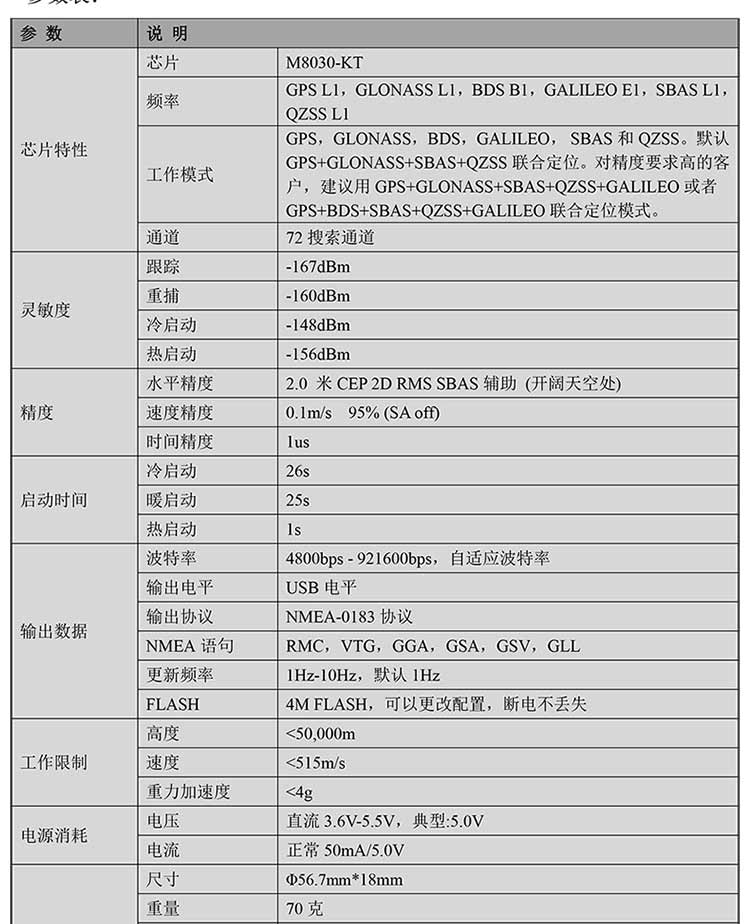

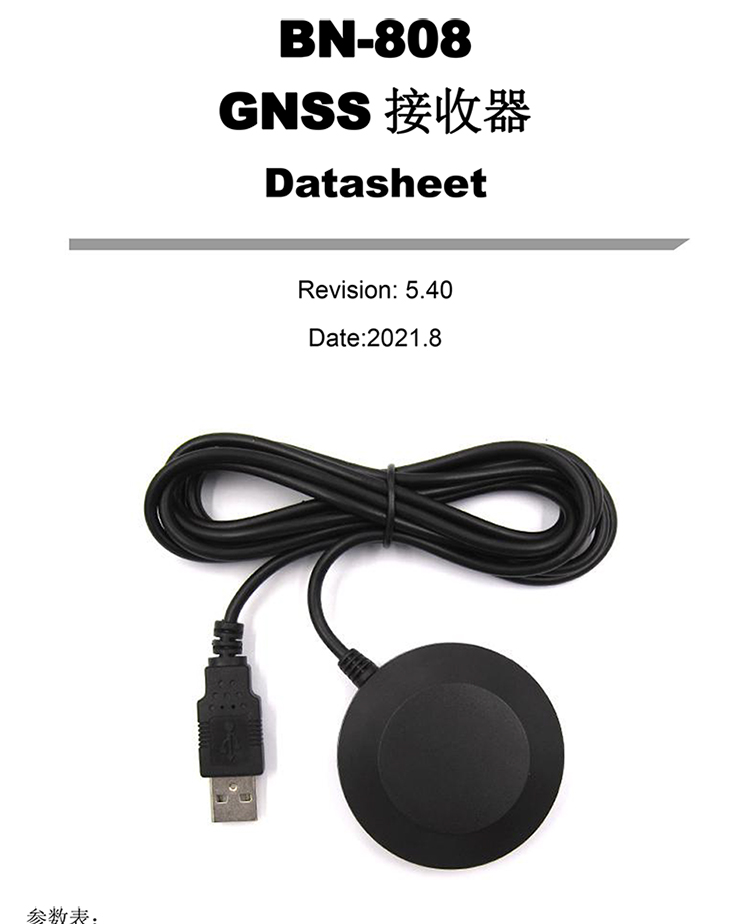

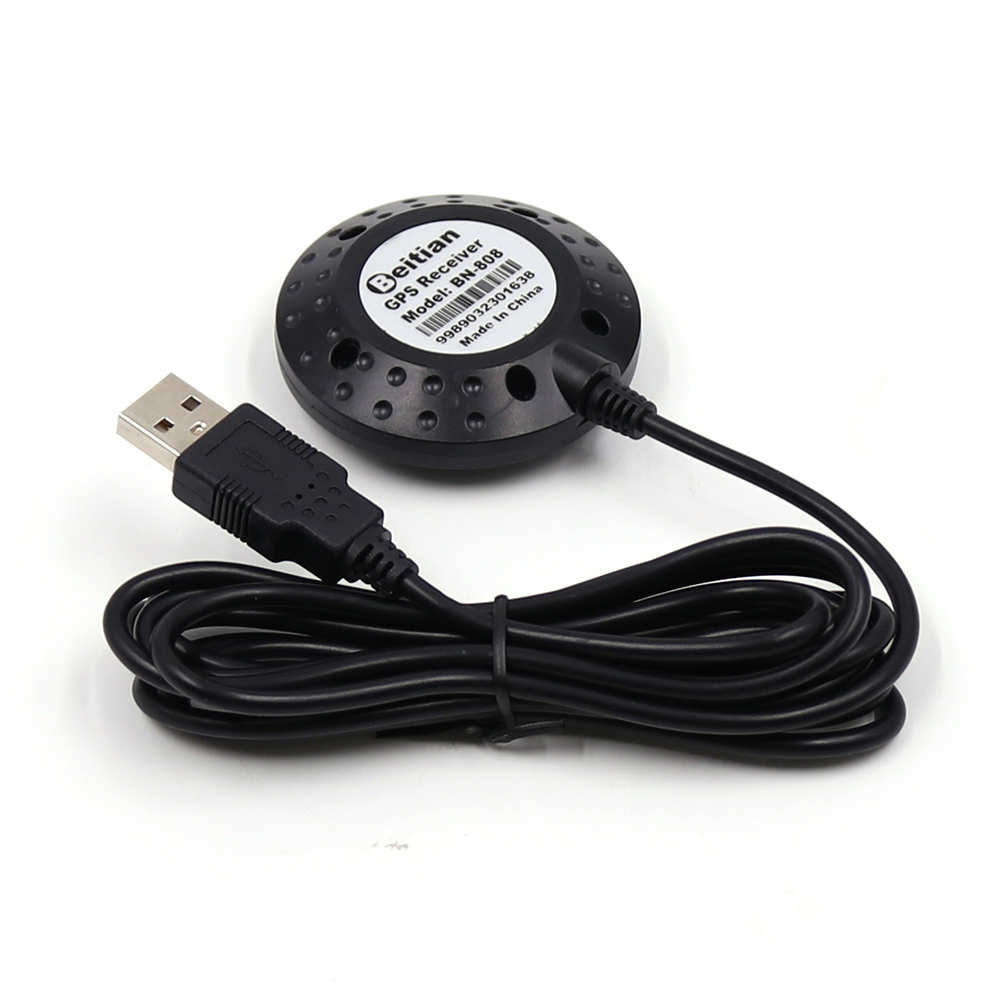

默认出货配置：双模芯片，GPS+GLONASS双模，2米线长，5V供电，USB头，USB电平，9600波特率，1HZ，NMEA-0183协议输出。

该双模GPS可以选择北斗+GPS双模定位，或者GLONASS+GPS双模定位。出货前提前说明，没有特别说明则按照默认GPS+GLONASS双模出货。

该接收器使用修改测试视频：

https://cloud.video.taobao.com//play/u/3168580383/p/1/e/6/t/1/280327616564.mp4

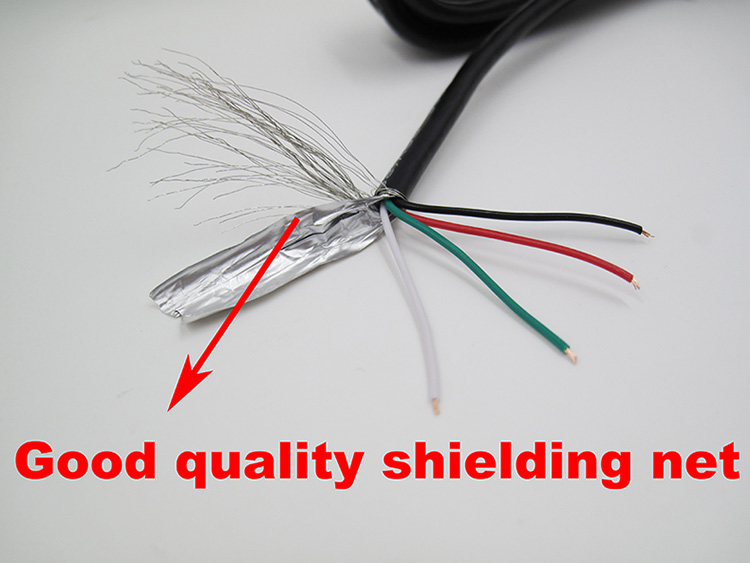

内部使用优质GPS专用射频电缆线材：

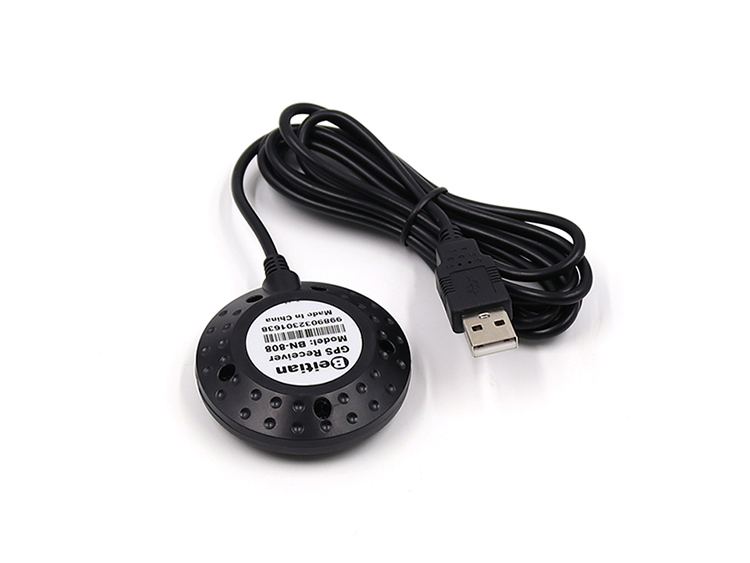

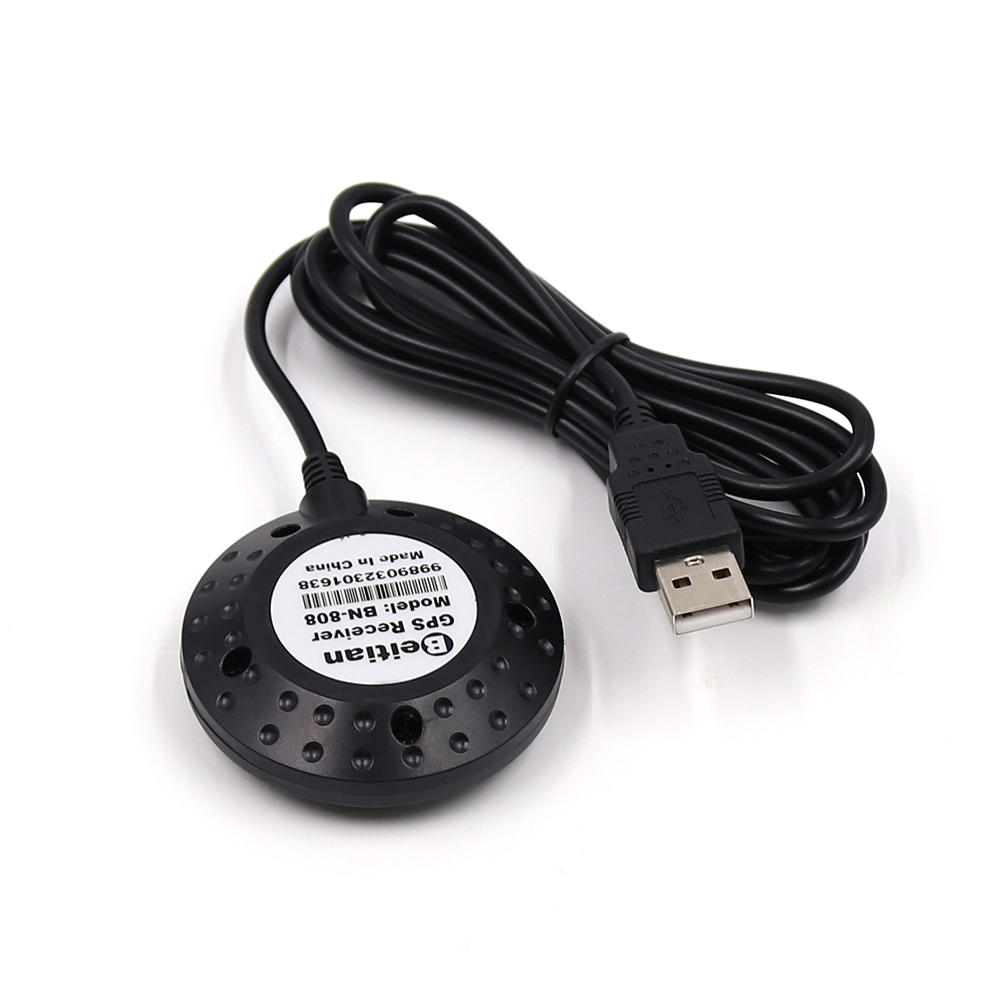

内部使用强磁性钕铁硼磁铁吸附固定：

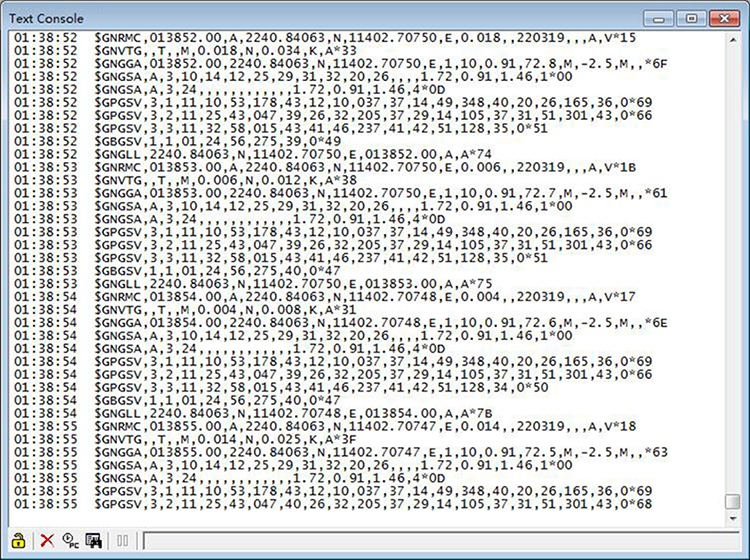

GPS+北斗双模模式数据输出：

$GNRMC,013854.00,A,2240.84063,N,11402.70748,E,0.004,,220319,,,A,V*17
$GNVTG,,T,,M,0.004,N,0.008,K,A*31
$GNGGA,013854.00,2240.84063,N,11402.70748,E,1,10,0.91,72.6,M,-2.5,M,,*6E
$GNGSA,A,3,10,14,12,25,29,31,32,20,26,,,,1.72,0.91,1.46,1*00
$GNGSA,A,3,24,,,,,,,,,,,,1.72,0.91,1.46,4*0D
$GPGSV,3,1,11,10,53,178,43,12,10,037,37,14,49,348,40,20,26,165,36,0*69
$GPGSV,3,2,11,25,43,047,39,26,32,205,37,29,14,105,37,31,51,301,43,0*66
$GPGSV,3,3,11,32,58,015,43,41,46,237,41,42,51,128,34,0*50
$GBGSV,1,1,01,24,56,275,40,0*47
$GNGLL,2240.84063,N,11402.70748,E,013854.00,A,A*7B

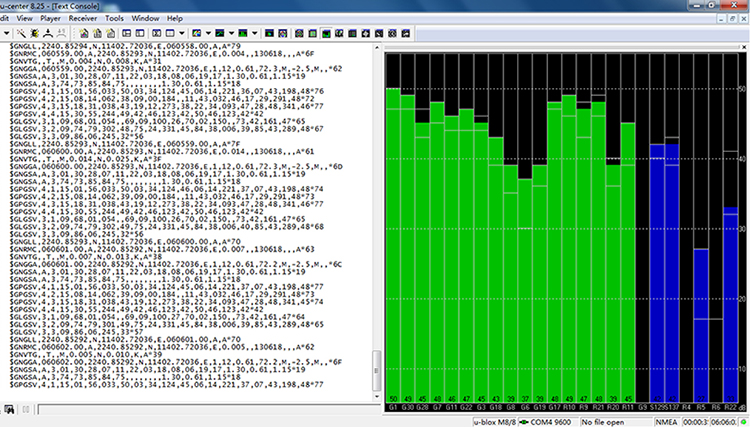

GPS+北斗双模模式数据输出和信号测试：
